09330104635 | Harting

Pin contact insert, 10B, 10 pole, equipped, screw connection, with PE contact, 09330104635

Order No.: 44F3095
EAN: 4099889774504
MPN:
09330104635
09 33 010 4635
Series: Han E AV
09330104635 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
64.2362 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
64.24 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
64.2362 €

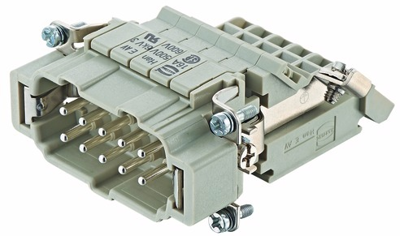

Contact insert, 09 33 010 4635, Harting

Insert, Terminal block connector, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 B, Contacts: 10, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 10B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Contact connection screw connection
Additional parts equipped
Version pin insert
Shell size 10B
Pin number 10 pole
PE contact Yes
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
RoHS conform Yes
