09330064736 | Harting

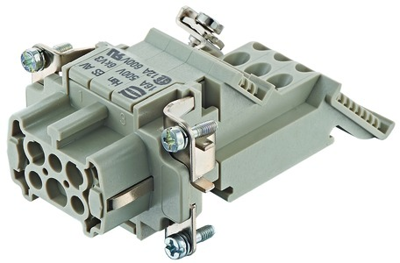

Socket contact insert, 6B, 6 pole, equipped, screw connection, with PE contact, 09330064736

Order No.: 44F3076
EAN: 4099889774368
MPN:
09330064736
09 33 006 4736
Series: Han E AV
09330064736 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
44.4227 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
44.42 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
44.4227 €

Contact insert, 09 33 006 4736, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 6 B, Contacts: 6, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 6B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Additional parts equipped
Pin number 6 pole
PE contact Yes
Contact connection screw connection
Shell size 6B
Version socket insert
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
