09320640001 | Harting

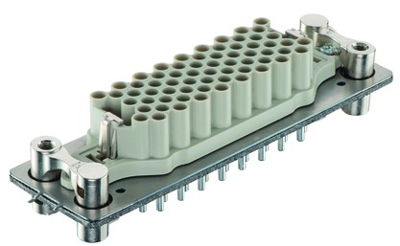

Socket/pin contact insert, 24B, 64 pole, unequipped, crimp connection, with PE contact, 09320640001
Unit Price (€ / pc.)
143.871 € *
Standard delivery time from the manufacturer is: 13 Weeks
Contact insert, 09 32 064 0001, Harting
Insert, Panel feed through, Crimp termination, Male, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 24 B, Contacts: 64
Technical Data
- Contact design: Socket/Pin Insert
- Material: Thermoplastic
- Shell size: 24B
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 500 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | crimp connection | |
| Shell size | 24B | |
| Additional parts | unequipped | |
| PE contact | Yes | |
| Pin number | 64 pole | |
| Version | socket/pin insert |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
