09210404711 | Harting

Socket contact insert, 16B, 40 pole, equipped, screw connection, with PE contact, 09210404711

Order No.: 44F2176
EAN: 4099889773804
MPN:
09210404711
09 21 040 4711
Series: Han D

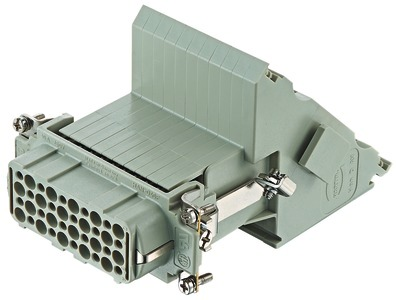

09210404711 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
146.5842 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
146.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
146.5842 €

Contact insert, 09 21 040 4711, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version socket insert
Pin number 40 pole
Additional parts equipped
Contact connection screw connection
PE contact Yes
Shell size 16B
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
