09210404701 | Harting

Socket contact insert, 16B, 40 pole, equipped, screw connection, with PE contact, 09210404701

Order No.: 44F2174
EAN: 4099889773781
MPN:
09210404701
09 21 040 4701
Series: Han D
09210404701 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
146.5842 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
146.58 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
146.5842 €

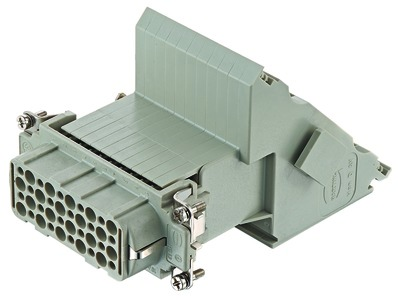

Contact insert, 09 21 040 4701, Harting

Insert, Terminal block connector, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Shell size 16B
Version socket insert
Contact connection screw connection
Additional parts equipped
PE contact Yes
Pin number 40 pole
Logistics
Property Value
Country of origin DE
Customs tariff number 85366990
Compliance
Property Value
Date of RoHS guidelines 3/31/15
SVHC free Yes
RoHS conform Yes
