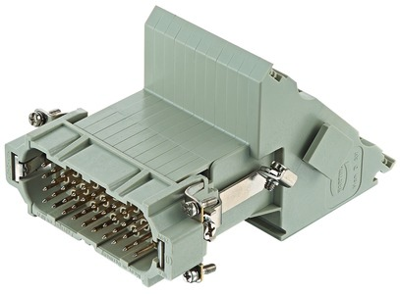

09210404611 | Harting

Pin contact insert, 16B, 40 pole, equipped, screw connection, with PE contact, 09210404611

Order No.: 44F2172
EAN: 4099889773767
MPN:
09210404611
09 21 040 4611
Series: Han D
09210404611 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
144.0852 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
144.09 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
144.0852 €

Contact insert, 09 21 040 4611, Harting

Insert, Terminal block connector, Screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 16 B, Contacts: 40, Conductor cross-section: 0.2-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 16B
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 40 pole
Version pin insert
Additional parts equipped
Shell size 16B
Contact connection screw connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
