09210253111 | Harting

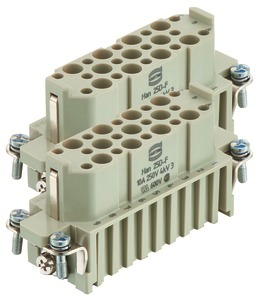

Socket contact insert, 32A, 50 pole, unequipped, crimp connection, with PE contact, 09210253111

Order No.: 44F2167
EAN: 4099889773712
MPN:
09210253111
09 21 025 3111
Series: Han D
09210253111 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
11.5549 € *
Standard delivery time from the manufacturer is: 5 Weeks
Total Price:
11.55 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.5549 €

Contact insert, 09 21 025 3111, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 32 A, Contacts: 50, Conductor cross-section: 0.14-2.5 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 32A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Version socket insert
Pin number 50 pole
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Shell size 32A
Logistics
Property Value
Customs tariff number 85366990
Country of origin RO
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
