09200103001 | Harting

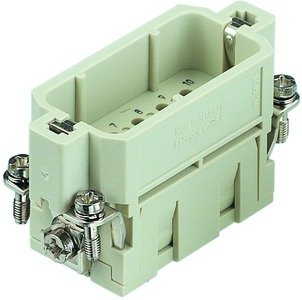

Pin contact insert, 10A, 10 pole, unequipped, crimp connection, with PE contact, 09200103001
Unit Price (€ / pc.)
10.1864 € *
Standard delivery time from the manufacturer is: 6 Weeks
Contact insert, 09 20 010 3001, Harting
Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 A, Contacts: 10, Conductor cross-section: 0.14-4 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 10A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 250 V
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| PE contact | Yes | |
| Additional parts | unequipped | |
| Shell size | 10A | |
| Version | pin insert | |
| Contact connection | crimp connection | |
| Pin number | 10 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
