09200102814 | Harting

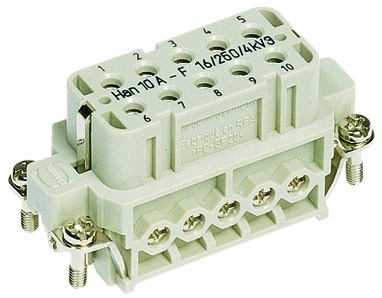

Socket contact insert, 10A, 10 pole, equipped, screw connection, with PE contact, 09200102814

Order No.: 44F2084
EAN: 4099889773491
MPN:
09200102814
09 20 010 2814
Series: Han A
09200102814 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
13.3042 € *
Available: 0 pcs.
Leadtime: 7 Weeks **
Total Price:
13.30 € *
*incl. VAT plus shipping costs
**Subject to prior sale
1 pcs.
13.3042 €

Contact insert, 09 20 010 2814, Harting

Insert, Screw termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: 10 A, Contacts: 10, Conductor cross-section: 0.75-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 10A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 250 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
PE contact Yes
Contact connection screw connection
Shell size 10A
Pin number 10 pole
Version socket insert
Additional parts equipped
Logistics
Country of origin DE
Customs tariff number 85366990
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead
SVHC free No
RoHS conform Yes
