09200032634 | Harting

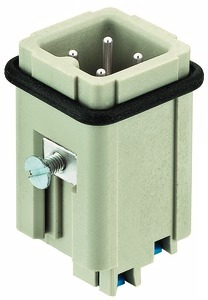

Pin contact insert, 3A, 3 pole, equipped, spring connection, with PE contact, 09200032634
Unit Price (€ / pc.)
10.115 € *
Standard delivery time from the manufacturer is: 4 Weeks
Contact insert, 09 20 003 2634, Harting
Insert, Han-Quick Lock termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 3, Conductor cross-section: 0.25-1.5 mm², Copper alloy, Silver plated
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- PE contact: Yes
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin insert | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Contact connection | spring connection | |
| PE contact | Yes | |
| Shell size | 3A |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
| SVHC free | No |
