09155083001 | Harting

Pin contact insert, 8 pole, unequipped, crimp connection, with PE contact, 09155083001

Order No.: 44F0950
EAN: 4099889773231
MPN:
09155083001
09 15 508 3001
Series: Han F+B
09155083001 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
9.044 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
9.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.044 €

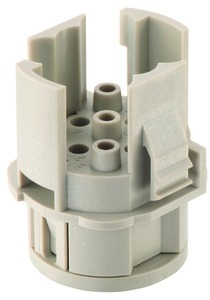

Contact insert, 09 15 508 3001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 20 A, Contacts: 4, + 4 additional signal contacts, Conductor cross-section: 0.14-4 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 20 A
  • Rated voltage: 400 V
  • PE contact: Yes
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 8 pole
Version pin insert
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
