09149042001 | Harting
Pin contact insert, EE cube, large tab, 4 pole, unequipped, crimp connection, 09149042001
Unit Price (€ / pc.)
3.6295 € *
Standard delivery time from the manufacturer is: 2 Weeks
Insert, 09149042001, Harting

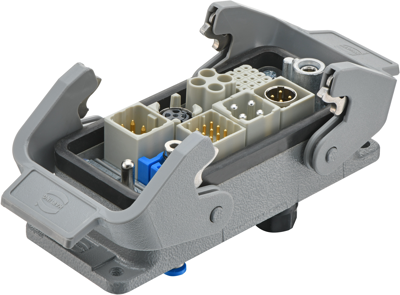

Insert, Large tab, Crimp connection, Pin, Contacts: 4, Conductor cross section: 0.14 - 4 mm², Rated current: 16 A, Polycarbonate (PC), RAL 7032 (pebble gray). For a complete module, one cube with a small tab and one cube with a large tab are required. Cube inserts can be configured with pins or sockets, as well as data, power, signal or pneumatic connectors. Of course, dummy cube inserts (placeholders) are also available.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | unequipped | |
| Shell size | EE cube, large tab | |
| Pin number | 4 pole | |
| PE contact | No | |
| Contact connection | crimp connection | |
| Version | pin insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | RO |
| Customs tariff number | 85389099 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
