09140173001 | Harting

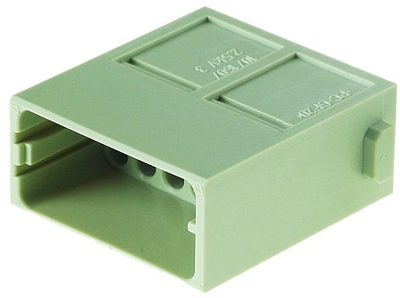

Pin contact insert, 17 pole, unequipped, crimp connection, 09140173001
Unit Price (€ / pc.)
5.7596 € *
Available: 7 pcs.
Leadtime: 9 Weeks **
Total Price:
5.76 € *
Price list
Quantity
Price per unit*
1 pcs.
5.7596 €
10 pcs.
5.0575 €
100 pcs.
4.4506 €
*incl. VAT plus shipping costs
**Subject to prior sale
Contact insert, 09 14 017 3001, Harting
Han DDD module, Crimp termination, Male, Contacts: 17, Conductor cross-section: 0.14-2.5 mm², Rated current: 10 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Technical Data
- Contact design: Pin Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 160 V
- PE contact: No
- Colour: gray
Technical specifications
| PE contact | No | |
| Contact connection | crimp connection | |
| Pin number | 17 pole | |
| Version | pin insert | |
| Additional parts | unequipped |
Download
Logistics
| Country of origin | DE |
| Customs tariff number | 85389099 |
Compliance
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | Yes |
| RoHS conform | Yes |
