09140123002 | Harting

Pin contact insert, DD, 12 pole, unequipped, crimp connection, 09140123002

Order No.: 44F0653
EAN: 4099889772869
MPN:
09140123002
09 14 012 3002
Series: Han Modular

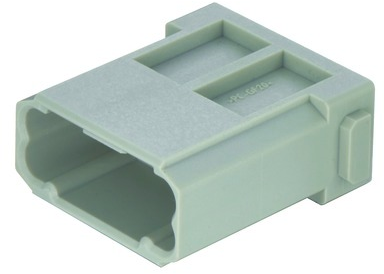

09140123002 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
4.3197 € *
Available: 7 pcs.
Total Price:
4.32 € *
Price list
Quantity
Price per unit*
1 pcs.
4.3197 €
10 pcs.
3.8199 €
100 pcs.
3.3558 €
250 pcs.
3.2249 €
1000 pcs.
2.9988 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09 14 012 3002, Harting

Han DD module, Crimp termination, Male, Contacts: 12, Conductor cross-section: 0.14-2.5 mm², Rated current: 10 A, Polycarbonate (PC), RAL 7032 (pebble grey)

Technical Data

  • Contact design: Pin Insert
  • Shell size: DD
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: No
  • Colour: gray
Technical specifications
Filter Property Value
Pin number 12 pole
Version pin insert
Additional parts unequipped
Shell size DD
Contact connection crimp connection
PE contact No
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
SVHC free Yes
Date of RoHS guidelines 3/31/15
