09140122632 | Harting

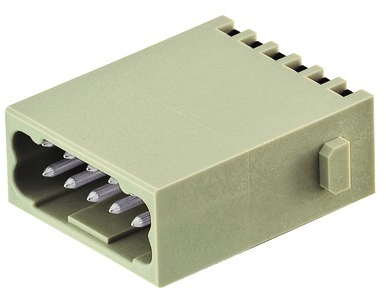

Pin contact insert, DD, 12 pole, equipped, spring connection, 09140122632

Order No.: 44F0647
EAN: 4099889772821
MPN:
09140122632
09 14 012 2632
Series: Han Modular
09140122632 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
21.5628 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
21.56 € *
Price list
Quantity
Price per unit*
1 pcs.
21.5628 €
10 pcs.
20.0515 €
25 pcs.
18.4450 €
50 pcs.
16.9694 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09 14 012 2632, Harting

Han DD module, Han-Quick Lock termination, Male, Contacts: 12, Conductor cross-section: 0.25-1.5 mm², Rated current: 10 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Shell size: DD
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 250 V
  • PE contact: No
  • Colour: gray
Technical specifications
Filter Property Value
Version pin insert
Pin number 12 pole
Additional parts equipped
Contact connection spring connection
PE contact No
Shell size DD
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
