09140052717 | Harting

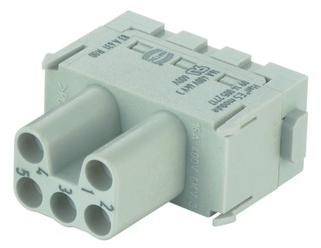

Socket contact insert, 5 pole, equipped, cage clamp terminal, 09140052717
Unit Price (€ / pc.)
37.4850 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
37.49 € *
Price list
Quantity
Price per unit*
1 pcs.
37.4850 €
5 pcs.
35.7833 €
10 pcs.
34.7242 €
25 pcs.
32.3442 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 14 005 2717, Harting
Han ES module, Cage-clamp termination, Female, Contacts: 5, Conductor cross-section: 0.14-2.5 mm², Rated current: 16 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Gold plated
Technical Data
- Contact design: Socket Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 16 A
- Rated voltage: 400 V
- PE contact: No
- Colour: gray
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | socket contact insert | |
| Additional parts | equipped | |
| Contact connection | cage clamp terminal | |
| Pin number | 5 pole | |
| PE contact | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate |
| RoHS conform | Yes |
