09140032701 | Harting

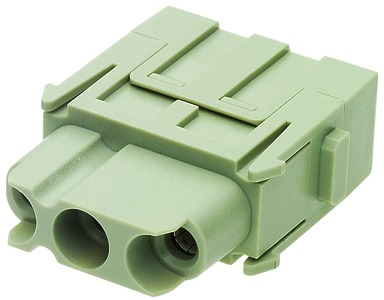

Socket contact insert, 3 pole, equipped, axial screw connection, 09140032701
Unit Price (€ / pc.)
18.2427 € *
Standard delivery time from the manufacturer is: 2 Weeks
Contact insert, 09 14 003 2701, Harting
Han C module, Axial screw termination, Female, Contacts: 3, Conductor cross-section: 2.5-8 mm², Rated current: 40 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 40 A
- Rated voltage: 690 V
- PE contact: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | axial screw connection | |
| PE contact | No | |
| Pin number | 3 pole | |
| Additional parts | equipped | |
| Version | socket insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
