09140022742 | Harting

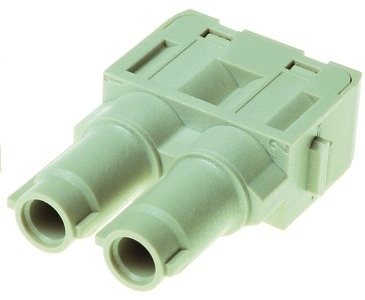

Socket contact insert, 2 pole, equipped, axial screw connection, 09140022742
Unit Price (€ / pc.)
31.8682 € *
Available: 1 pcs.
Contact insert, 09 14 002 2742, Harting
Han 70 A module, Axial screw termination, Female, Contacts: 2, Conductor cross-section: 14-22 mm², Rated current: 70 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated
Technical Data
- Contact design: Socket Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 70 A
- Rated voltage: 1000 V
- PE contact: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Additional parts | equipped | |
| Version | socket insert | |
| Pin number | 2 pole | |
| PE contact | No | |
| Contact connection | axial screw connection |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
