09140022701 | Harting

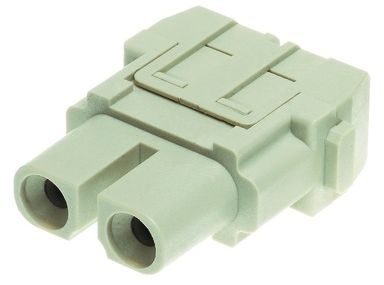

Socket contact insert, 2 pole, equipped, axial screw connection, 09140022701

Order No.: 44F0536
EAN: 4099889771992
MPN:
09140022701
09 14 002 2701
Series: Han Modular
09140022701 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
25.0138 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
25.01 € *
Price list
Quantity
Price per unit*
1 pcs.
25.0138 €
10 pcs.
23.0027 €
25 pcs.
21.1701 €
50 pcs.
19.2661 €
*incl. VAT plus shipping costs
Subject to prior sale

Contact insert, 09 14 002 2701, Harting

Han 40 A module, Axial screw termination, Female, Contacts: 2, Conductor cross-section: 2.5-8 mm², Rated current: 40 A, Polycarbonate (PC), RAL 7032 (pebble grey), Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 1000 V
  • PE contact: No
Technical specifications
Filter Property Value
Pin number 2 pole
Version socket insert
Additional parts equipped
Contact connection axial screw connection
PE contact No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead
SVHC free No
Date of RoHS guidelines 3/31/15
