09140014703 | Harting
Socket contact insert, 8 pole, equipped, IDC connection, 09140014703
Unit Price (€ / pc.)
69.139 € *
Standard delivery time from the manufacturer is: 10 Weeks

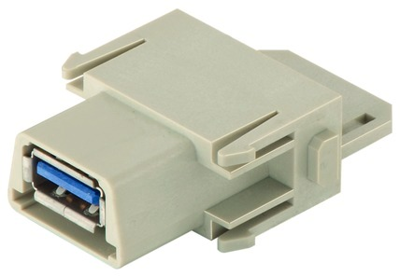

Contact insert, 09 14 001 4703, Harting
Han USB module, For patch cable, Female, Contacts: 8, Rated current: 1 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Technical Data
- Contact design: Socket Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 85 °C
- Rated current: 1 A
- Rated voltage: 50 V
- PE contact: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Contact connection | IDC connection | |
| Special Contacts | USB | |
| PE contact | No | |
| Pin number | 8 pole | |
| Additional parts | equipped | |
| Version | socket insert |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 85366990 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
