09140014651 | Harting

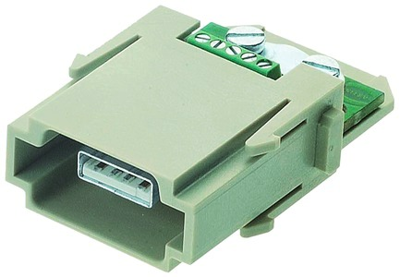

Pin contact insert, 4 pole, equipped, screw connection, 09140014651
NCNR (non cancelable / non returnable)
Unit Price (€ / pc.)
43.4945 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
43.49 € *
Price list
Quantity
Price per unit*
1 pcs.
43.4945 €
5 pcs.
41.5429 €
10 pcs.
39.7698 €
25 pcs.
38.1276 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 14 001 4651, Harting
Han USB module, For screw termination, Screw termination, Male, Contacts: 4, Conductor cross-section: 0.14-0.5 mm², Rated current: 1 A, Polycarbonate (PC), RAL 7032 (pebble grey)
Technical Data
- Contact design: Pin Insert
- min. Operating temperature: -40 °C
- max. Operating temperature: 85 °C
- Rated current: 1 A
- Rated voltage: 50 V
- PE contact: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact insert | |
| Additional parts | equipped | |
| Contact connection | screw connection | |
| Pin number | 4 pole | |
| Special Contacts | USB | |
| PE contact | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85389099 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
