09120123004 | Harting

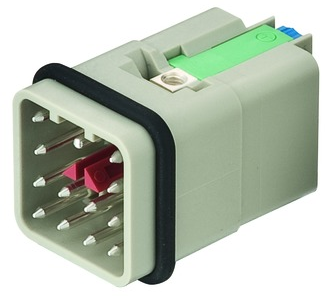

Pin contact insert, 3A, 12 pole, unequipped, crimp connection, with PE contact, 09120123004
Unit Price (€ / pc.)
10.7219 € *
Available: 1 pcs.
Contact insert, 09 12 012 3004, Harting
Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 12, Conductor cross-section: 0.14-2.5 mm²
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 400 V
- PE contact: Yes
Technical specifications
| Filter | Property | Value |
|---|---|---|
| PE contact | Yes | |
| Additional parts | unequipped | |
| Shell size | 3A | |
| Version | pin insert | |
| Contact connection | crimp connection | |
| Pin number | 12 pole |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Substance description | Lead |
| Date of RoHS guidelines | 3/31/15 |
