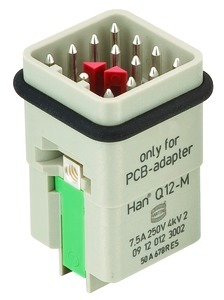

09120123002 | Harting

Pin contact insert, 3A, 12 pole, equipped, solder connection, with PE contact, 09120123002

Order No.: 44F0349
EAN: 4099889771480
MPN:
09120123002
09 12 012 3002
Series: Han Q
09120123002 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
9.9484 € *
Standard delivery time from the manufacturer is: 11 Weeks
Total Price:
9.95 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
9.9484 €

Contact insert, 09 12 012 3002, Harting

Insert, Solder termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 7.5 A, Size: 3 A, Contacts: 12

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 7.5 A
  • Rated voltage: 250 V
  • PE contact: Yes
Technical specifications
Filter Property Value
Version pin insert
Pin number 12 pole
Additional parts equipped
Contact connection solder connection
PE contact Yes
Shell size 3A
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
