09120113111 | Harting

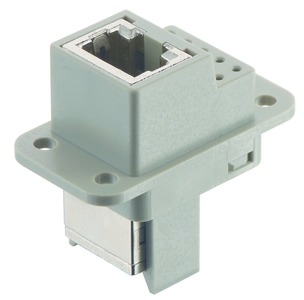

Socket contact insert, Compact, 8 pole, unequipped, crimp connection, 09120113111

Order No.: 44F0347
EAN: 4099889771466
MPN:
09120113111
09 12 011 3111
Series: Han Q
09120113111 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
55.7277 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
55.73 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
55.7277 €

Contact insert, 09 12 011 3111, Harting

Insert, Crimp termination, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 5 A, Size: Han-Compact, Contacts: 8, Conductor cross-section: 0.13-0.52 mm²

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 85 °C
  • Rated current: 5 A
  • Rated voltage: 50 V
  • PE contact: No
Technical specifications
Filter Property Value
Version socket insert
Pin number 8 pole
Additional parts unequipped
Contact connection crimp connection
PE contact No
Shell size Compact
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
