09120113001 | Harting

Pin contact insert, Compact, 8 pole, unequipped, crimp connection, 09120113001

Order No.: 44F0346
EAN: 4099889771459
MPN:
09120113001
09 12 011 3001
Series: Han Q
09120113001 Harting Contact Inserts

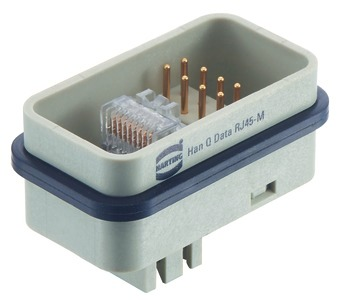

Image may differ
Unit Price (€ / pc.)
31.4398 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
31.44 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
31.4398 €

Contact insert, 09 12 011 3001, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 5 A, Size: Han-Compact, Contacts: 8, Conductor cross-section: 0.13-0.52 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 85 °C
  • Rated current: 5 A
  • Rated voltage: 50 V
  • PE contact: No
Technical specifications
Filter Property Value
Version pin insert
Pin number 8 pole
Additional parts unequipped
Contact connection crimp connection
PE contact No
Shell size Compact
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
