09120082633 | Harting

Pin contact insert, Compact, 8 pole, equipped, spring connection, with PE contact, 09120082633

Order No.: 44F0310
EAN: 4099889771299
MPN:
09120082633
09 12 008 2633
Series: Han Q

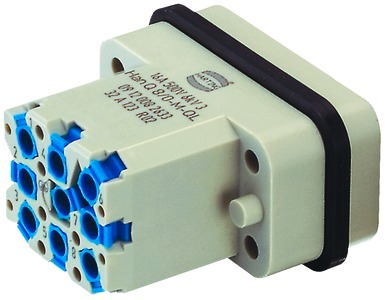

09120082633 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
22.6219 € *
Next delivery: 9 pcs. on 2025-10-24
Total Price:
22.62 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
22.6219 €

Contact insert, 09 12 008 2633, Harting

Insert, Han-Quick Lock termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 16 A, Size: Han-Compact, Contacts: 8, Conductor cross-section: 0.5-2.5 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 16 A
  • Rated voltage: 500 V
  • PE contact: Yes
Technical specifications
Filter Property Value
Version pin insert
Pin number 8 pole
Additional parts equipped
Contact connection spring connection
PE contact Yes
Shell size Compact
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
