09120063041 | Harting

Pin contact insert, Compact, 6 pole, unequipped, crimp connection, with PE contact, 09120063041

Order No.: 44F0293
EAN: 4099889771268
MPN:
09120063041
09 12 006 3041
Series: Han Q

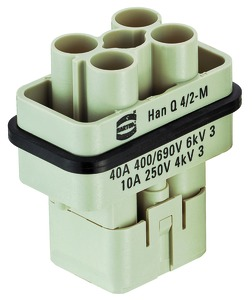

09120063041 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
17.0408 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
17.04 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
17.0408 €

Contact insert, 09 12 006 3041, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: Han-Compact, Contacts: 4, + 2 additional signal contacts, Conductor cross-section: 1.5-6 mm², 0.14-2.5 mm² Signal

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • PE contact: Yes
Technical specifications
Filter Property Value
Pin number 6 pole
Version pin insert
Additional parts unequipped
Shell size Compact
Contact connection crimp connection
PE contact Yes
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
