09120062792 | Harting

Socket contact insert, 3A, 2 pole, crimp connection, 09120062792

Order No.: 44F0288
EAN: 4099889771220
MPN:
09120062792
09 12 006 2792
Series: Han Brid

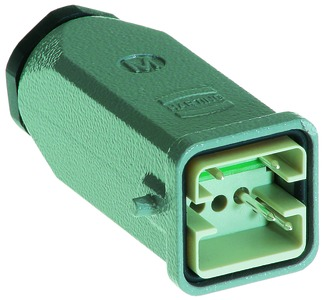

09120062792 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
148.6429 € *
Standard delivery time from the manufacturer is: 1 Week
Total Price:
148.64 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
148.6429 €

Contact insert, 09 12 006 2792, Harting

Insert, Female, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 2, + 4 electrical contacts 10 A + option for PE

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 10 A
  • Rated voltage: 50 V
  • PE contact: No
Technical specifications
Filter Property Value
Pin number 2 pole
Version socket insert
Shell size 3A
Contact connection crimp connection
PE contact No
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
RoHS conform Yes
Substance description Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
Date of RoHS guidelines 3/31/15
