09120033011 | Harting

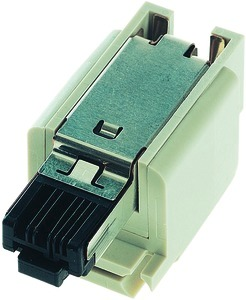

Pin contact insert, 3A, 2 pole, equipped, IDC connection, 09120033011
Unit Price (€ / pc.)
15.1130 € *
Standard delivery time from the manufacturer is: 6 Weeks
Total Price:
15.11 € *
Price list
Quantity
Price per unit*
1 pcs.
15.1130 €
10 pcs.
14.1610 €
25 pcs.
13.7326 €
50 pcs.
12.7687 €
*incl. VAT plus shipping costs
Subject to prior sale
Contact insert, 09 12 003 3011, Harting
Insert, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 10 A, Size: 3 A, Contacts: 2, + RJ45, Conductor cross-section: 0.22-0.32 mm² Stranded, 0.26-0.32 mm² Solid
Technical Data
- Contact design: Pin Insert
- Material: Thermoplastic
- Shell size: 3A
- min. Operating temperature: -40 °C
- max. Operating temperature: 125 °C
- Rated current: 10 A
- Rated voltage: 24 V
- PE contact: No
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | pin contact insert | |
| Shell size | 3A | |
| Additional parts | equipped | |
| Contact connection | IDC connection | |
| Pin number | 2 pole | |
| Special Contacts | RJ45 | |
| PE contact | No |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
