09120023052 | Harting

Pin contact insert, 3A, 2 pole, unequipped, crimp connection, with PE contact, 09120023052

Order No.: 44F0231
EAN: 4099889770735
MPN:
09120023052
09 12 002 3052
Series: Han Q

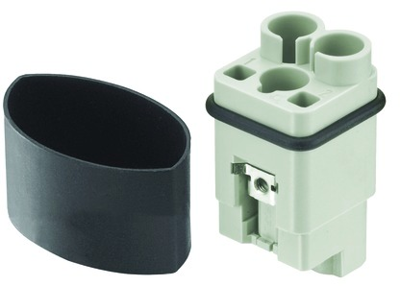

09120023052 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
11.8286 € *
Standard delivery time from the manufacturer is: 9 Weeks
Total Price:
11.83 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
11.8286 €

Contact insert, 09 12 002 3052, Harting

Insert, Crimp termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 3 A, Contacts: 2, Conductor cross-section: 1.5-10 mm²

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 830 V
  • PE contact: Yes
Technical specifications
Filter Property Value
Version pin insert
Pin number 2 pole
Additional parts unequipped
Contact connection crimp connection
PE contact Yes
Shell size 3A
Logistics
Property Value
Customs tariff number 85389099
Country of origin DE
Compliance
Property Value
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free Yes
