09120022652 | Harting

Pin contact insert, 3A, 2 pole, equipped, axial screw connection, with PE contact, 09120022652

Order No.: 44F0217
EAN: 4099889770599
MPN:
09120022652
09 12 002 2652
Series: Han Q

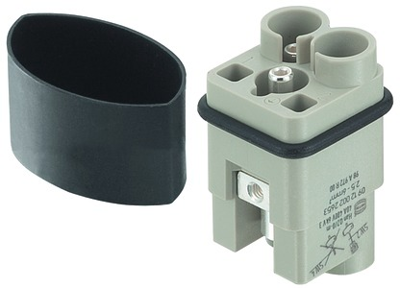

09120022652 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
51.9435 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
51.94 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
51.9435 €

Contact insert, 09 12 002 2652, Harting

Insert, Axial screw termination, Male, Polycarbonate (PC), RAL 7032 (pebble grey), Rated current: 40 A, Size: 3 A, Contacts: 2, Conductor cross-section: 4-10 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 40 A
  • Rated voltage: 830 V
  • PE contact: Yes
Technical specifications
Filter Property Value
Version pin insert
Pin number 2 pole
Additional parts equipped
Contact connection axial screw connection
PE contact Yes
Shell size 3A
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
