09120012651 | Harting

Pin contact insert, 3A, 1 pole, equipped, axial screw connection, 09120012651

Order No.: 44F0206
EAN: 4099889770483
MPN:
09120012651
09 12 001 2651
Series: Han Q

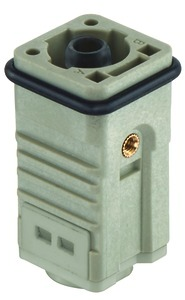

09120012651 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
52.7765 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
52.78 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
52.7765 €

Contact insert, 09 12 001 2651, Harting

Insert, Axial screw termination, Male, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: 100 A, Size: 3 A, Contacts: 1, Conductor cross-section: 16-25 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Pin Insert
  • Material: Thermoplastic
  • Shell size: 3A
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 100 A
  • Rated voltage: 400 V
  • PE contact: No
Technical specifications
Filter Property Value
Version pin insert
Pin number 1 pole
Additional parts equipped
Contact connection axial screw connection
PE contact No
Shell size 3A
Logistics
Property Value
Customs tariff number 85366990
Country of origin DE
Compliance
Property Value
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
