09110012772 | Harting

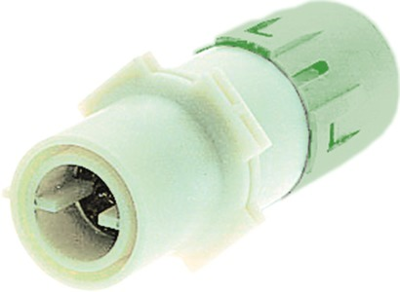

Socket contact insert, 1 pole, equipped, axial screw connection, 09110012772

Order No.: 44F0173
EAN: 4099889770391
MPN:
09110012772
09 11 001 2772
Series: Han HC Modular
09110012772 Harting Contact Inserts
Image may differ
Unit Price (€ / pc.)
139.1586 € *
Standard delivery time from the manufacturer is: 8 Weeks
Total Price:
139.16 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
139.1586 €

Contact insert, 09 11 001 2772, Harting

Insert, Axial screw termination, Female, Polycarbonate (PC), Polyamide (PA), RAL 7032 (pebble grey), Rated current: 650 A, Conductor cross-section: 150-185 mm², Copper alloy, Silver plated

Technical Data

  • Contact design: Socket Insert
  • Material: Thermoplastic
  • min. Operating temperature: -40 °C
  • max. Operating temperature: 125 °C
  • Rated current: 650 A
  • Rated voltage: 4000 V
  • PE contact: No
Technical specifications
Filter Property Value
Version socket insert
Pin number 1 pole
Additional parts equipped
Contact connection axial screw connection
PE contact No
Logistics
Property Value
Customs tariff number 85359000
Country of origin DE
Compliance
Property Value
Substance description Lead, Potassium 1,1,2,2,3,3,4,4,4-nonafluorobutane-1-sulphonate
Date of RoHS guidelines 3/31/15
RoHS conform Yes
SVHC free No
