19000007125 | Harting

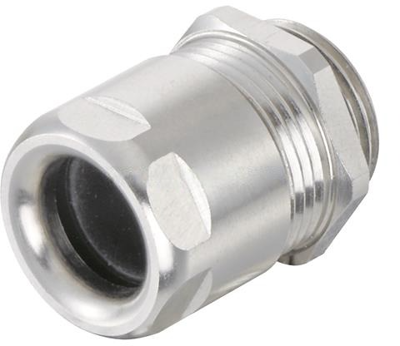

Cable gland, M32, 36/40 mm, Clamping range 20.5 to 25 mm, IP68, silver, 19000007125
Order No.: 42P5419
EAN: 5713140193154
MPN:
19000007125
19 00 000 7125
Unit Price (€ / pc.)
23.7048 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 19000007125, Harting
Cable gland, Railway version, M32, Clamping range: 20,5 - 25 mm, Material (cable glands): Brass, IP68, Wrench size: 36, 40.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 36/40 mm | |
| Length | 42.5 mm | |
| min. operating temperature | -40 °C | |
| Colour | silver | |
| Material | brass, nickel-plated | |
| Thread size | M32 | |
| min. clamping range | 20.5 mm | |
| max. clamping range | 25 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
