19000007123 | Harting

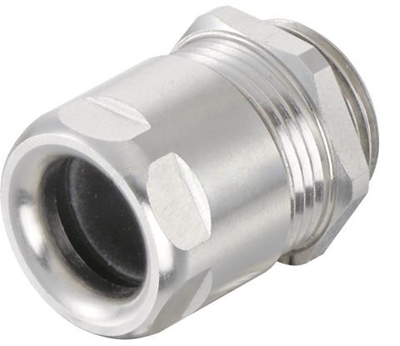

Cable gland, M25, 27/30 mm, Clamping range 14.5 to 18 mm, IP68, silver, 19000007123
Order No.: 42P5415
EAN: 5713140193130
MPN:
19000007123
19 00 000 7123
Unit Price (€ / pc.)
19.5398 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
19.54 € *
Price list
Quantity
Price per unit*
1 pcs.
19.5398 €
10 pcs.
18.3141 €
25 pcs.
17.7667 €
50 pcs.
16.5053 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 19000007123, Harting
Cable gland, Railway version, M25, Clamping range: 14,5 - 18 mm, Material (cable glands): Brass, IP68, Wrench size: 27, 30.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M25 | |
| min. clamping range | 14.5 mm | |
| max. clamping range | 18 mm | |
| spanner size | 27/30 mm | |
| Length | 36.35 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | silver | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
