19000007122 | Harting
Cable gland, M25, 27/30 mm, Clamping range 11 to 14.5 mm, IP68, silver, 19000007122
Order No.: 42P5413
EAN: 5713140193123
MPN:
19000007122
19 00 000 7122
Unit Price (€ / pc.)
14.5537 € *
Standard delivery time from the manufacturer is: On Request

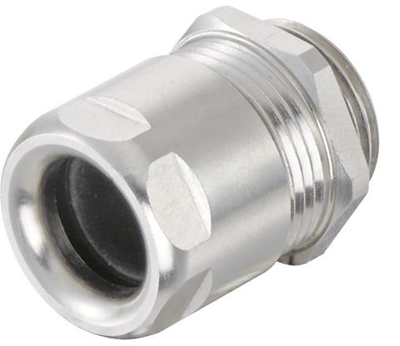

Cable gland, 19000007122, Harting
Cable gland, Railway version, M25, Clamping range: 11 - 14,5 mm, Material (cable glands): Brass, IP68, Wrench size: 27, 30.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 27/30 mm | |
| Length | 36.3 mm | |
| min. operating temperature | -40 °C | |
| Colour | silver | |
| Material | brass, nickel-plated | |
| Thread size | M25 | |
| min. clamping range | 11 mm | |
| max. clamping range | 14.5 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
