19000007121 | Harting

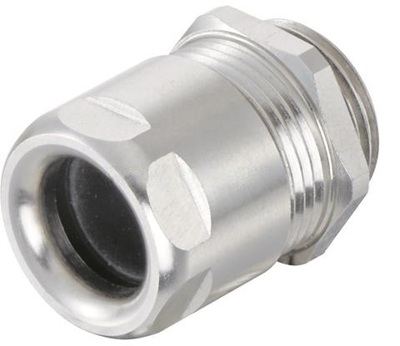

Cable gland, M20, 22/24 mm, Clamping range 10 to 14 mm, IP68, 19000007121
Order No.: 42P5412
EAN: 5713140193116
MPN:
19000007121
19 00 000 7121
Unit Price (€ / pc.)
10.1745 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 19000007121, Harting
Cable gland, Railway version, M20, Clamping range: 10 - 14 mm, Material (cable glands): Brass, IP68, Wrench size: 22, 24.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 22/24 mm | |
| Length | 33 mm | |
| min. operating temperature | -40 °C | |
| Material | brass, nickel-plated | |
| Thread size | M20 | |
| min. clamping range | 10 mm | |
| max. clamping range | 14 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
