19000007102 | Harting

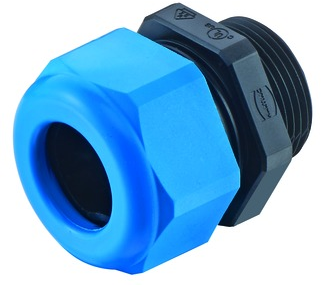

Cable gland, M20, 24 mm, Clamping range 6 to 12 mm, IP68, black, 19000007102
Order No.: 44F9324
EAN: 4099891200619
MPN:
19000007102
19 00 000 7102
Unit Price (€ / pc.)
3.7366 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
3.74 € *
Price list
Quantity
Price per unit*
1 pcs.
3.7366 €
10 pcs.
3.4867 €
50 pcs.
3.3796 €
100 pcs.
3.0940 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 19000007102, HARTING
Cable gland, M20, Clamping range: 6-12 mm, Material (cable glands): Polyamide, IP68, Wrench size: 24.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M20 | |
| min. clamping range | 6 mm | |
| max. clamping range | 12 mm | |
| spanner size | 24 mm | |
| Degree of protection (IP) | IP68 | |
| Material | PA | |
| Colour | black | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 39269097 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
