19000005197 | Harting

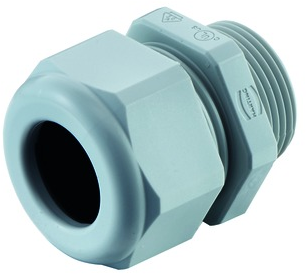

Cable gland, M40, 53 mm, Clamping range 20 to 26 mm, IP68, light gray, 19000005197
Order No.: 44F9321
EAN: 4099891200589
MPN:
19000005197
19 00 000 5197
Unit Price (€ / pc.)
26.0729 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 19000005197, HARTING
Cable gland, M40, Clamping range: 20-26 mm, Material (cable glands): Polyamide, IP68, Wrench size: 53.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 53 mm | |
| Colour | light gray | |
| Degree of protection (IP) | IP68 | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C | |
| Material | PA | |
| max. clamping range | 26 mm | |
| min. clamping range | 20 mm | |
| Thread size | M40 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
