19000005132 | Harting

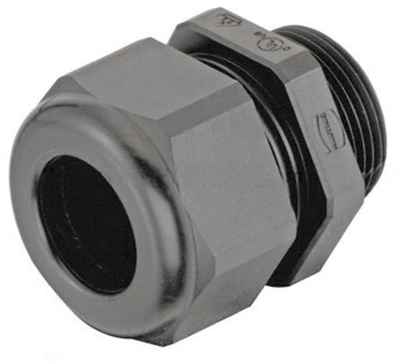

Cable gland, M20, Clamping range 6 to 12 mm, IP68, black, 19000005132
Order No.: 42P5407
EAN: 5713140123861
MPN:
19000005132
19 00 000 5132
Unit Price (€ / pc.)
2.4514 € *
Available: 10 pcs.
Total Price:
2.45 € *
Price list
Quantity
Price per unit*
1 pcs.
2.4514 €
10 pcs.
2.2848 €
50 pcs.
2.2134 €
100 pcs.
2.0230 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 19000005132, Harting
Cable gland, M20, Clamping range: 6 - 12 mm, Material (cable glands): Thermoplastic, IP68.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M20 | |
| min. clamping range | 6 mm | |
| max. clamping range | 12 mm | |
| Length | 36 mm | |
| Degree of protection (IP) | IP68 | |
| Material | thermoplastic | |
| Colour | black | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
