19000005099 | Harting

Cable gland, M40, 50 mm, Clamping range 20 to 32 mm, IP68, 19000005099

Order No.: 44F9304
EAN: 4099891200428
MPN:
19000005099
19 00 000 5099
19000005099 Harting Cable Glands
Image may differ
Unit Price (€ / pc.)
28.4529 € *
Standard delivery time from the manufacturer is: 2 Weeks
Total Price:
28.45 € *
*incl. VAT plus shipping costs
Subject to prior sale
1 pcs.
28.4529 €

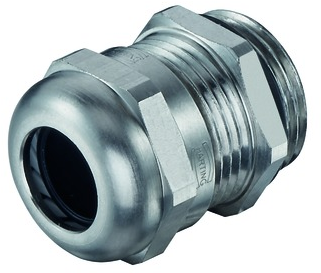

Cable gland, 19000005099, HARTING

Cable gland, M40, Clamping range: 20-32 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, Wrench size: 50.

Technical specifications
Degree of protection (IP) IP68
max. clamping range 32 mm
Product type cable gland
min. operating temperature -40 °C
Material brass, nickel-plated
spanner size 50 mm
max. operating temperature 100 °C
min. clamping range 20 mm
Thread size M40
Logistics
Country of origin DE
Customs tariff number 84849000
Compliance
Date of RoHS guidelines 3/31/15
Substance description Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol
SVHC free No
RoHS conform Yes
