19000005090 | Harting

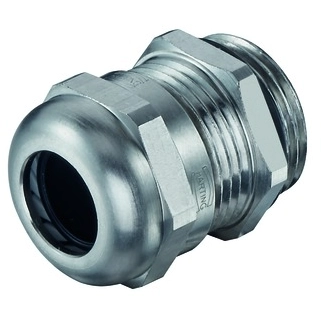

Cable gland, M25, 30 mm, Clamping range 9 to 16 mm, IP68, gray, 19000005090
Order No.: 44F9296
EAN: 4099891200343
MPN:
19000005090
19 00 000 5090
Unit Price (€ / pc.)
13.5541 € *
Available: 14 pcs.
Total Price:
13.55 € *
Price list
Quantity
Price per unit*
1 pcs.
13.5541 €
10 pcs.
12.6973 €
25 pcs.
12.3165 €
50 pcs.
11.4478 €
*incl. VAT plus shipping costs
Subject to prior sale
Cable gland, 19000005090, HARTING
Cable gland, M25, Clamping range: 9-16 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, Wrench size: 30.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M25 | |
| min. clamping range | 9 mm | |
| max. clamping range | 16 mm | |
| spanner size | 30 mm | |
| Degree of protection (IP) | IP68 | |
| Material | brass, nickel-plated | |
| Colour | gray | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
| RoHS conform | Yes |
