19000005084 | Harting
Cable gland, M20, 24 mm, Clamping range 10 to 14 mm, IP68, 19000005084
Order No.: 44F9293
EAN: 4099891200329
MPN:
19000005084
19 00 000 5084
Unit Price (€ / pc.)
11.424 € *
Available: 7 pcs.

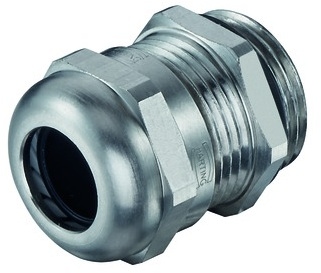

Cable gland, 19000005084, HARTING
Cable gland, M20, Clamping range: 10-14 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, Wrench size: 24.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 24 mm | |
| min. operating temperature | -40 °C | |
| Material | brass, nickel-plated | |
| Thread size | M20 | |
| min. clamping range | 10 mm | |
| max. clamping range | 14 mm | |
| Degree of protection (IP) | IP68 | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Substance description | Lead |
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
