19000005081 | Harting

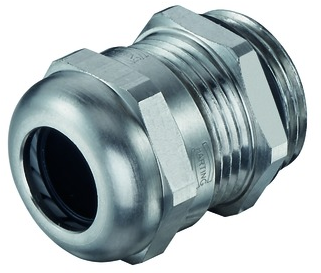

Cable gland, M20, 22 mm, Clamping range 5 to 12 mm, IP68, silver, 19000005081
Order No.: 44F9292
EAN: 4099891200312
MPN:
19000005081
19 00 000 5081
Unit Price (€ / pc.)
5.1289 € *
Standard delivery time from the manufacturer is: 2 Weeks
Cable gland, 19000005081, HARTING
Cable gland, M20, Clamping range: 5-12 mm, Material (cable glands): Brass, Material (clamping ring): Polyamide (PA), IP68, Wrench size: 22.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Thread size | M20 | |
| Material | brass, nickel-plated | |
| min. operating temperature | -40 °C | |
| Product type | cable gland | |
| Degree of protection (IP) | IP68 | |
| max. operating temperature | 100 °C | |
| Colour | silver | |
| min. clamping range | 5 mm | |
| max. clamping range | 12 mm | |
| spanner size | 22 mm |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84849000 |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead, 6,6'-di-tert-butyl-2,2'-methylenedi-p-cresol |
