19000005078 | Harting
Cable gland, M40, 40/43 mm, Clamping range 19 to 28 mm, IP68/IP69/IPX9K, 19000005078
Order No.: 42P5405
EAN: 5713140193062
MPN:
19000005078
19 00 000 5078
Unit Price (€ / pc.)
43.6611 € *
Standard delivery time from the manufacturer is: 4 Weeks
Total Price:
43.66 € *
Price list
Quantity
Price per unit*
1 pcs.
43.6611 €
2 pcs.
42.4473 €
5 pcs.
41.2930 €
*incl. VAT plus shipping costs
Subject to prior sale

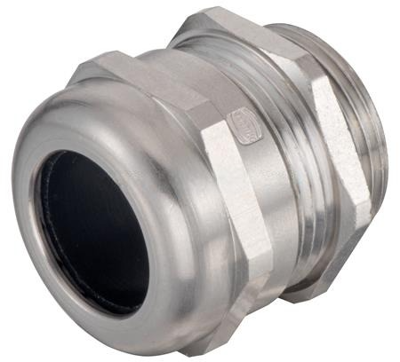

Cable gland, 19000005078, Harting
Cable gland, M40, Clamping range: 19 - 28 mm, Material (cable glands): Brass, Material (clamping ring: Polyamide (PA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | M40 | |
| min. clamping range | 19 mm | |
| max. clamping range | 28 mm | |
| spanner size | 40/43 mm | |
| Length | 51.7 mm | |
| Degree of protection (IP) | IP68/IP69/IPX9K | |
| Material | brass, nickel-plated | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
| RoHS conform | Yes |
