19000005034 | Harting

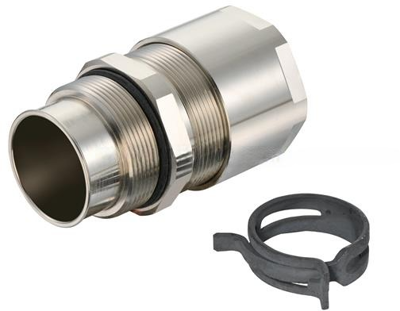

Cable gland, EMC, M50, 51/53 mm, Clamping range 21 to 35 mm, IP65/IP68, gray, 19000005034
Order No.: 42P5435
EAN: 5713140193222
MPN:
19000005034
19 00 000 5034
Unit Price (€ / pc.)
132.7326 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 19000005034, Harting
Cable gland, EMV Version, M50, Clamping range: 21 - 35 mm, Material (cable glands): Brass, Material (clamping ring: Polyamide (PA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| max. operating temperature | 100 °C | |
| spanner size | 51/53 mm | |
| Length | 101.9 mm | |
| min. operating temperature | -40 °C | |
| Colour | gray | |
| Material | brass, nickel-plated | |
| Thread size | M50 | |
| min. clamping range | 21 mm | |
| max. clamping range | 35 mm | |
| Degree of protection (IP) | IP65/IP68 | |
| Product type | cable gland | |
| Version | EMC |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | No |
| Date of RoHS guidelines | 3/31/15 |
