19000005031 | Harting

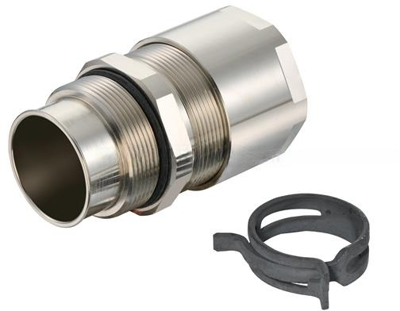

Cable gland, EMC, M40, 44 mm, Clamping range 16 to 28 mm, IP65/IP68, gray, 19000005031
Order No.: 42P5433
EAN: 5713140193208
MPN:
19000005031
19 00 000 5031
Unit Price (€ / pc.)
90.0592 € *
Standard delivery time from the manufacturer is: On Request
Cable gland, 19000005031, Harting
Cable gland, EMV Version, M40, Clamping range: 16 - 28 mm, Material (cable glands): Brass, Material (clamping ring: Polyamide (PA).
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Version | EMC | |
| Thread size | M40 | |
| min. clamping range | 16 mm | |
| max. clamping range | 28 mm | |
| spanner size | 44 mm | |
| Length | 77.9 mm | |
| Degree of protection (IP) | IP65/IP68 | |
| Material | brass, nickel-plated | |
| Colour | gray | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 100 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | DE |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
