09000005089 | Harting
Cable gland, PG16, 24 mm, Clamping range 11.5 to 15.5 mm, IP68, white, 09000005089
Order No.: 44F131
EAN: 4099891199630
MPN:
09000005089
09 00 000 5089
Unit Price (€ / pc.)
7.8659 € *
Standard delivery time from the manufacturer is: 2 Weeks

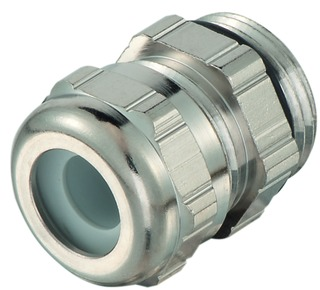

Cable gland, 09000005089, HARTING
Cable gland, Pg 16, Clamping range: 11.5-15.5 mm, Material (cable glands): Metal, IP68, Wrench size: 24.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| spanner size | 24 mm | |
| max. operating temperature | 130 °C | |
| max. clamping range | 15.5 mm | |
| Thread size | PG16 | |
| Colour | white | |
| Degree of protection (IP) | IP68 | |
| Material | metal | |
| min. clamping range | 11.5 mm | |
| min. operating temperature | -40 °C | |
| Product type | cable gland |
Download
Logistics
| Property | Value |
|---|---|
| Country of origin | DE |
| Customs tariff number | 84849000 |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| SVHC free | No |
| RoHS conform | Yes |
| Substance description | Lead |
