09000005013 | Harting

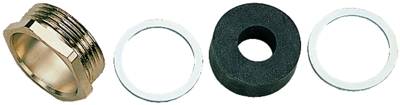

Cable gland, PG11, 18 mm, Clamping range 6.5 to 12 mm, IP65, 09000005013
Order No.: 44F076
EAN: 4099891199166
MPN:
09000005013
09 00 000 5013
Unit Price (€ / pc.)
1.1781 € *
Standard delivery time from the manufacturer is: 1 Week
Cable gland, 09000005013, HARTING
Cable gland with cutting seal, Pg 11, Clamping range: 6.5-12 mm, Material (cable glands): Metal, IP65, Wrench size: 18.
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Product type | cable gland | |
| Thread size | PG11 | |
| min. clamping range | 6.5 mm | |
| max. clamping range | 12 mm | |
| spanner size | 18 mm | |
| Degree of protection (IP) | IP65 | |
| Material | metal | |
| min. operating temperature | -40 °C | |
| max. operating temperature | 115 °C |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 84849000 |
| Country of origin | IN |
Compliance
| Property | Value |
|---|---|
| Date of RoHS guidelines | 3/31/15 |
| Substance description | Lead |
| SVHC free | No |
| RoHS conform | Yes |
