09452451930 | Harting

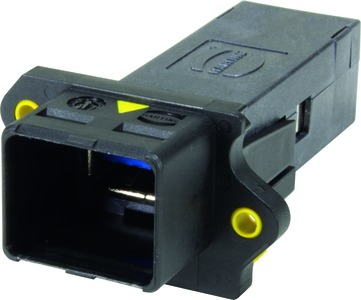

Feed through, USB socket type A 3.0 to USB socket type A 3.0, straight, 09452451930
Unit Price (€ / pc.)
30.583 € *
Standard delivery time from the manufacturer is: 2 Weeks
Panel feed through, USB 3.0 type A, contacts: 4
Panel feed through, USB 3.0 type A, contacts: 4
The technical features of 09452451930 from Harting at a glance
- Type of product designation: PushPull V4 PFT, USB 3.0 A
- Contact design Panel feed through
- Angle contact/conductor connection 180° (horizontal)
- Protection class (IP, mounted) IP67 - IP65
- Number of plug contacts: 4
- Designation: PushPull V4 PFT, USB 3.0 A
- max. Ambient temperature 70 °C
- max. Operating temperature 70 °C
- min. Ambient temperature -40 °C
- min. Operating temperature -40 °C
Technical specifications
| Filter | Property | Value |
|---|---|---|
| Version | feed through | |
| Connector | USB socket type A 3.0 | |
| Connector (exit) | USB socket type A 3.0 | |
| Design | straight |
Download
Logistics
| Property | Value |
|---|---|
| Customs tariff number | 85366990 |
| Country of origin | RO |
Compliance
| Property | Value |
|---|---|
| RoHS conform | Yes |
| SVHC free | Yes |
| Date of RoHS guidelines | 3/31/15 |
